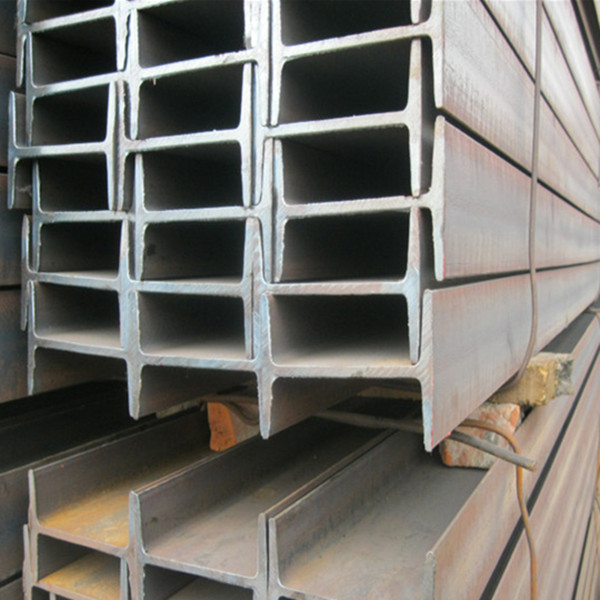

M.S. H-BEAM
M.S. H-BEAM
These are the H Cross section used in the joints; they are available in multiple dimensions and formats. It is the difference between the width by height ratio in the case of I beam. The width of the flange would be equal to or more than the height of the cross section
In the case of I section, the height of the cross section would be higher than the width of the flange.
The shear strength is better in the case of I beam. These Products Basic sizes available are as under:

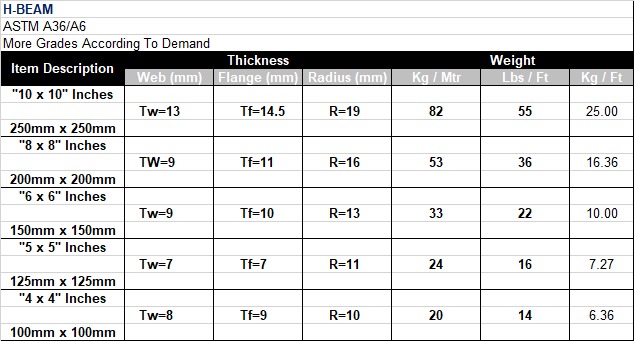

- Sizes: 100 x 100 mm up to 400 x 400 mm
- And Above size on requirement to customers
- Length : 6 meter to 12 meter approx
- Foreign Pakistan or Imported
